Fiberglass Textiles

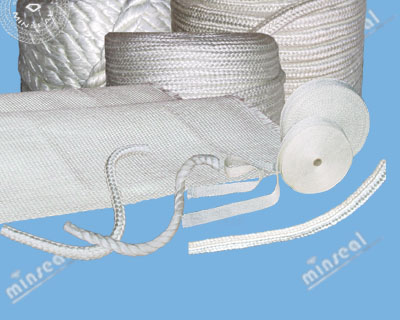

Cloth, Tape, Rope and Braid

Fiberglass textile products are made from high temperature fiberglass, for 1000° F level applications.  They have outstanding heat resistance, high tensile strength, low thermal conductivity, and excellent chemical resistance. They are durable, resistant to mildew, and have no hazard to health. Fiberglass textiles are ideal material for various industrial insulation, seal and gasket applications.

            Fiberglass Textile Product Styles:

Main Characteristics:

• Heat, spark and flame resistant
• Chemical resistant
• Low thermal conductivity
• High tensile strength -- no stretching or shrinking
• High dielectric strength
• No hazard to health

3300 Yarn:  Available in texturized yarn and non-texturized yarn

3310 Cloth: Available in texturized and non-texturized cloth. Weave pattern: plain, twill or satin.

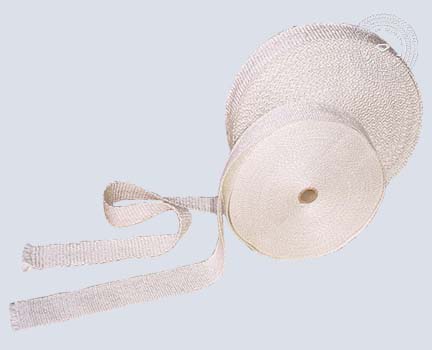

3320G Standard Plain Tape & 3320D Drop Warp Tape

Standard Width: 1”, 1-1/2”, 2”, 2-1/2”, 3”, 4”, 5”, 6”;

Thickness: 1/16” and 1/8”; Standard Length: 100’ (30 m)

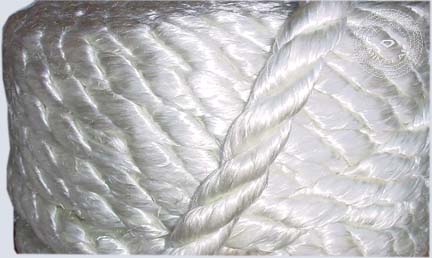

3330 Twisted Rope:  3-strand roving twisted rope.

            Sizes:     1/4", 3/8”, 1/2", 5/8”, 3/4", 7/8”, 1”, 1-1/4”, 1-1/2”, 2”, 3”

3340 Square Braid:    Square Braided Packing Rope

            Sizes:     1/4", 3/8”, 1/2", 5/8”, 3/4", 7/8”, 1”, 1-1/4”, 1-1/2”, 2”, 3”

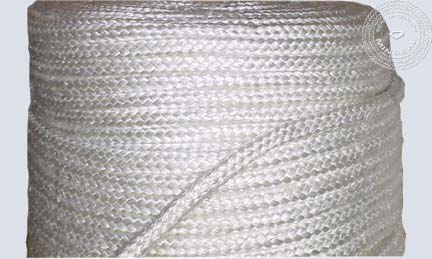

3350 Round Braid:     Round Braided Packing Rope

            Sizes:     1/4", 3/8”, 1/2", 5/8”, 3/4", 7/8”, 1”, 1-1/4”, 1-1/2”, 2”, 3”

3355 Knit Round Braid:  Knit Braided Packing Rope

            Sizes:     1/4", 3/8”, 1/2", 5/8”, 3/4", 7/8”, 1”, 1-1/4”, 1-1/2”, 2”, 3”

3360 Sleeving (Tube):  Wall thickness: 1/16” (.080”); 1/8” (.120”)

            Standard size: 1/2", 5/8”, 3/4", 7/8”, 1”, 1-1/4”, 1-1/2”

Chemical and Physical Properties:

    Chemical Composition (Typical):              SiO₂ 54%; CaO 18%; Al₂O₃ 12%; B₂O₃ 8%

    Physical Properties:  Fiber Diameter: 9 microns; Fiber Length: Continuous Filament

                                   Working Temperature: 1,000° F (550° C) for Continuous Use; 1,200° F (650° C) Maximum
