CeraTex® Ceramic Fiber Tape

Ceramic Fiber Rope and BraidCeraTex® Ceramic Fiber Tape is a narrow woven fabric manufactured from high temperature alumino-silicate based ceramic fiber reinforced with high temperature fiberglass. The product is white and odorless, suitable for high temperature applications up to 2300°F.

Characteristics and Specs

    • Low thermal conductivity, low heat storage, high temperature stable, thermal shock resistant
    • Fire and flame proof
    • Chemical resistant, compatible with most corrosive chemicals, commonly used acid and alkali (exceptions are hydrofluoric, phosphoric acids and concentrated alkalis)
    • Lightweight, woven texture with excellent handling strength,

Working Temperature :           1,800 °F. for Continuous Use, 2300 °F Maximum
Specific Heat (@2000°F):      0.27 Btu/lb °F

Typical Applications

    • Safety and protective insulation covers, strip curtains, door seals;
    • Insulation wrapping material for cable, wire, pipe, exhaust, etc;
    • Gaskets, tadpole gasket and other high temperature insulation seal.

Product Styles

3120G Ceramic Fiber Tape, Standard Fiberglass Reinforced

3120W Ceramic Fiber Tape with Wire Insert

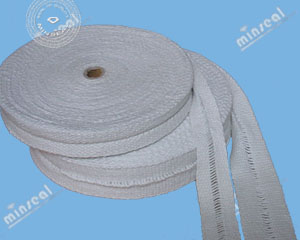

3120D Ceramic Fiber Drop Warp Tape (Bolt Hole Tape, Ladder Tape)



3120G Ceramic Fiber Tape
3120G Ceramic Fiber Tape
3120D Ceramic Fiber Drop Warp Tape
3120D Drop Warp Tape

Product Sizes and Variants

Thickness: 1/16" , 1/8"; Width: 1/2" to 6"; Roll Length: 100'

Also available: Heat treated, Adhesive(PSA) back

Customer Application Notes

Heat Cleaning Process: The products contain certain amount of organic binder materials(necessary for fiber carding process). The organic binder will burn out at lower temperature and generate smokes. This will not affect the ceramic fiber properties. After the organic binder is burned out the product will turn white again. In applications where smoke is prohibited, the product should be heat cleaned or treated first before it is put into use.

Product Handling: Require protective gloves, cloth, mask and dust control. Details on product MSDS.

Minseal Sitemap

CeraTex Ceramic Fiber products equivalent brands: Fiberfrax® or Kaowool®.
