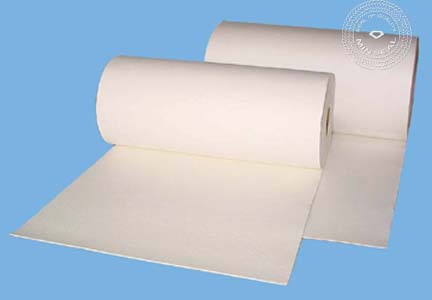

                                        CeraTex 3170 Ceramic Fiber Paper



CeraTex 3170 Paper is an alumino-silicate ceramic fiber-based non-woven fabric. It is manufactured through a special paper-making process with high purity washed fibers.

 Main Characteristics:

  • White color, light-weight, flexible, good handling strength and good uniformity
  • Resists temperature as high as 2300 F, fire resistant
  • Low thermal conductivity, low heat storage, thermal shock resistant
  • Good dielectric strength
  • Excellent corrosion resistance (Resistant to most chemicals except hydrofluoric, phosphoric acids and concentrated alkalis).
  • Good for die-cut and automatic stamping

 Chemical and Physical Data:

Density:                                    10 lb/cu.ft.

Chemical Composition: Al2O3:  47%; Total Al2O3 and SiO2 >97%; Fe2O3:  < 1.0%

Tensile Strength:                       25 PSI

LOI:                                         < 9%

            Working Temperature : 1,800 F for Continuous Use; 2300 F Maximum

Typical Applications

  • Thermal insulation, gasket, seal, separator, lining, etc. for high temperature and chemical resistant applications
  • Fire protection, spark and molten metal protection
  • High temperature electrical insulation
  • High temperature filtration

Application industries: Steel and metallurgy, Petro-chemistry, Automotive, Aerospace, Appliance, and many others

Standard Sizes

Thickness: 1/32", 1/16, 1/8, 1/4"

Width: 24" and 48"
